Suitable for
Pure or filled bitumen, pitch, diesel oil, crude oil, lube oil, sodium silicate, acids, plastics, mixed chemicals, isocyanates, paint, ink, resins, adhesives, acids, soap, lye, kaolin, black liquor, lime, latex, sludge, chocolate, cacao butter, fillers, sugar, vegetable fats and oils, molasses and animal feed.
Features
- Adjustable clearances – Optimised efficiency
- Flange connection options (DIN, ANSI)
- Hard metal bearings and shafts available – Long service life

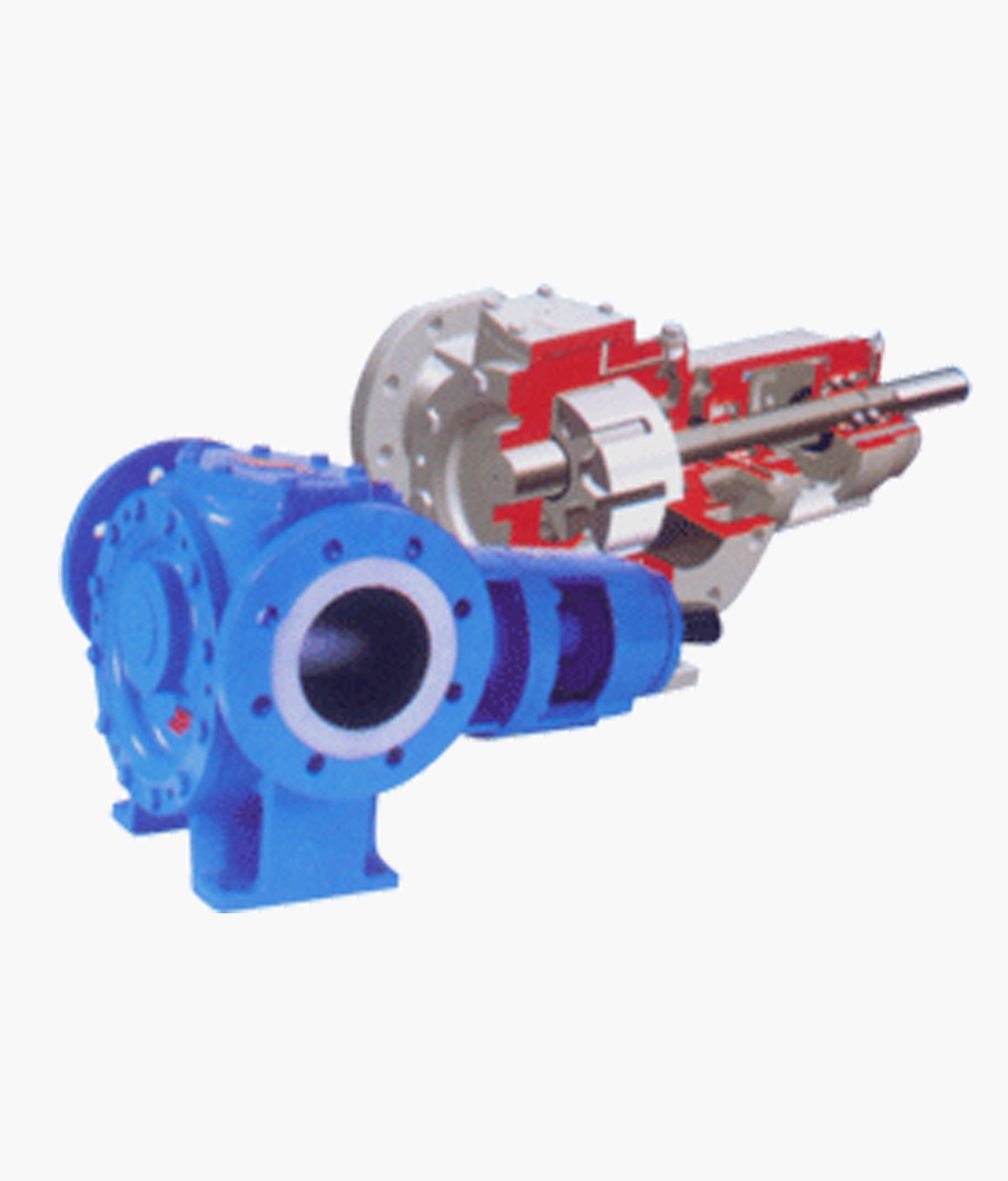

- Front and back pull-out design – Less maintenance downtime
- Big ports – Low NPSHreq. Improved priming ability
Details
| Casing: | Cast steel, Ductile iron, Stainless steel |
|---|---|
| Idler: | Cast iron, Stainless steel, Steel |
| Rotor: | Cast iron, Nodular iron, Stainless steel |
| Max. capacity: | 130 m3/h |
| Max. differential pressure: | 16 bar |
| Max. temperature: | 300°C |
| Max. viscosity: | 80 000 mPas |
